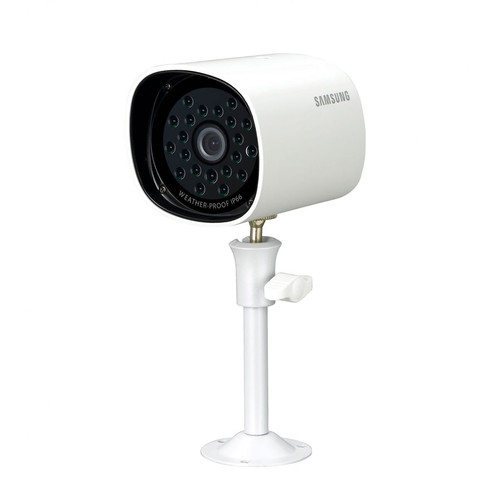

Samsung Sco-1020rp
TEKNİK ÖZELLİKLERİ
VIDEO
Imaging Device 1/4" CMOS
Total Pixels 680(H) x 512(V) 680(H) x 512(V)
Scanning System 2 : 1 Interlace
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution 520 TV Lines
Min. Illumination 0Lux (IR LED on)
S / N Ratio 46dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vp-p / 75Ω composite
LENS TYPE
Focal Length (Zoom Ratio) 3.6mm
Max. Aperture Ratio F2.0
Angular Field of View H:56° V:42°
Min. Object Distance 0.2m
Lens Type Fixed
Mount Type Board Type
OPERATIONAL
Day & Night Auto
Digital Noise Reduction Auto
Gain Control Auto
White Balance Auto (3,200K° ~ 6,500K°)
Shutter Mode Auto (Rolling Shutter)
IR Distance 15m ( IR LED 15 EA)
ENVIRONMENTAL
Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
Ingress Protection IP66
ELECTRICAL Input Voltage/Current 12V DC
Power Consumption 2.2W
MECHANICAL Color / Material White / Plastic
Dimension (W x H x D) 65.5 x 65.5 x 94.6 mm (2.58" x 2.58" x 3.72)
Weight 300g (0.66lb)
|
